How to Measure a Door Accurately (Every Door Type, Step by Step)

Order the wrong size door and you’re not just annoyed. You’re looking at a restocking fee, a return shipment, and weeks of waiting for round two. It happens more than most people think. A recent homeowner survey found that 58% of people spent more than planned on a DIY project because of an error somewhere along the way, and measuring is one of the easiest places that goes sideways.

Here’s the good news. Measuring a door correctly isn’t complicated once you know exactly what you’re measuring, whether that’s the door slab, the frame, or the rough opening.

In this guide, you’ll learn:

• How to measure a door slab (width, height, thickness)

• How to measure a rough opening for a prehung door

• How to measure exterior, sliding, and pocket doors

• Standard door sizes for quick reference

• Common measuring mistakes that lead to a bad fit

Grab a tape measure and let’s get started.

What You’ll Need Before You Start

You don’t need much for this project. A few basic tools make the difference between a guess and an accurate measurement.

• Steel tape measure (at least 25 feet, since cloth tapes stretch and throw off your numbers)

• Notepad and pencil, or your phone’s notes app

• A helper to hold the other end of the tape, especially for taller exterior doors

• A level, if you suspect the opening might be out of square

Once you’ve got those, you’re ready to start measuring.

How Are Doors Measured? The Three Numbers That Matter

Doors get measured three different ways, and mixing them up is where most ordering mistakes start. The slab is the door itself, the frame is the jamb it hangs in, and the rough opening is the structural hole in the wall behind all of it.

Which one you need depends on your project. Swapping just the door and keeping the existing frame? You want the slab. Installing a whole new prehung unit? You want the rough opening. We’ll walk through each one below.

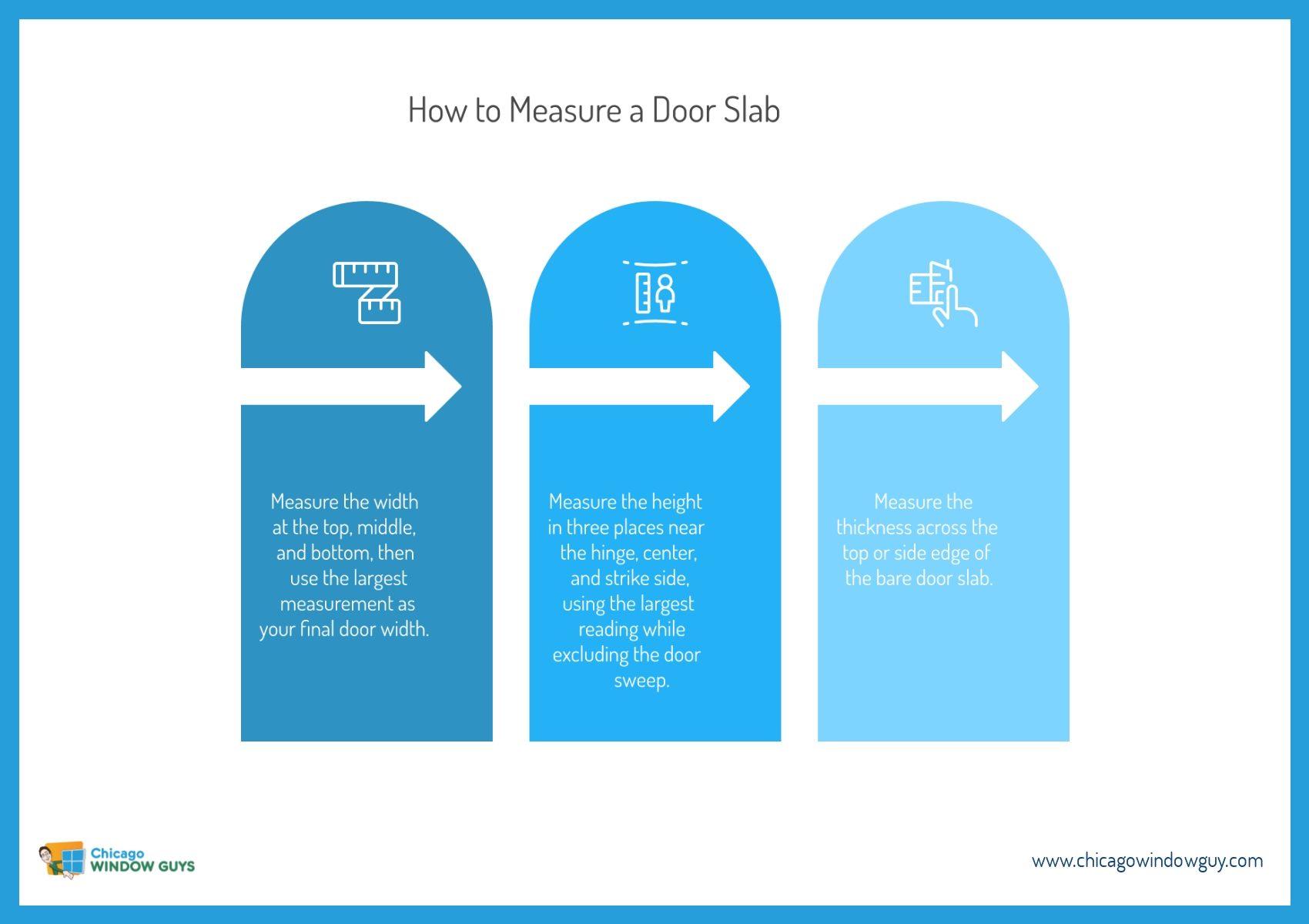

How to Measure a Door Slab: Door Size Basics

Measuring the door slab means measuring just the moving part, not the frame around it. This is the measurement you need if you’re replacing an old door but reusing the existing frame and jamb.

Measure the Width

Measure the width of the door at the top, middle, and bottom of the slab. Take three measurements because doors settle unevenly over the years, so the top and bottom rarely match exactly.

Use the largest measurement as your final door width. You’re replicating what’s currently hanging there, so it needs to match the existing opening, not an idealized version of it.

Measure the Height

Next, measure the height of the door in three places too: near the hinge side, the center, and the strike side (where the handle sits). Take the largest of the three readings.

Skip the door sweep or bottom weatherstrip when you measure. You want the bare slab, measured from the top edge to the bottom edge.

Measure the Thickness

Open the door and measure the thickness across the top or side edge. Standard interior doors run about 1-3/8 inches thick, while most exterior doors are 1-3/4 inches to hold up against weather and provide better insulation.

How to Measure the Rough Opening for a Prehung Door

The rough opening is the structural hole in the wall, framed by the header above, the studs on each side, and the sill or subfloor below. If you’re installing a prehung door unit rather than swapping just a slab, this is the measurement that actually matters.

Rough Opening Width and Height

Measure the width of the opening from stud to stud, or jamb to jamb if the old frame is still in place, at the top, middle, and bottom. This time, use the smallest of the three measurements, because the tightest point is what limits what will physically fit through.

Do the same for height, measuring from the top of the rough opening down to the subfloor or finished floor, at both sides and the center.

How to Measure a Door Jamb and Wall Thickness

Measure the jamb depth, which is the distance from the interior wall surface to the exterior wall surface. This needs to match your actual wall thickness so the door casing and interior trim sit flush on both sides once it’s installed.

The nominal size labeled on a door is rarely its true dimension. A “32-inch door” typically measures closer to 31-3/4 inches wide, leaving about 1/8 inch of clearance on each side of the jamb so it doesn’t bind when it swings.

How to Measure an Exterior Door for Replacement

Exterior doors add a few extra variables. You’re not just fitting a slab into a frame; you’re also matching up against siding, brickmold, and weatherproofing.

How to Measure a Door Frame, Brickmold, and Exterior Trim

Measure the frame width and height the same way you would for an interior door, jamb to jamb at three points, using the smallest reading. Then note the width of the brickmold or exterior trim separately, since that affects how the new unit will meet your siding or masonry.

Don’t measure to the outer edge of the trim and call it your door size. That’s one of the most common mistakes homeowners make when ordering a replacement door for the first time.

Ordering a Flangeless vs. Flanged Replacement

If you’re keeping your existing exterior trim, you’ll want a flangeless (or “insert”) replacement door that fits inside the current frame. If you’re replacing the trim too, a flanged unit installs more like new construction.

Either way, an energy-efficient exterior door pulls its weight beyond just fit. ENERGY STAR notes that certified doors, windows, and skylights can lower heating and cooling costs by up to 13% nationwide. Here at Chicago Window Guys, our energy-efficient fiberglass entry doors are among our most requested upgrades for exactly that reason, and homeowners in our service area often see savings closer to 20% once air leaks around the old frame are gone, too.

How to Measure a Sliding, Pocket, or Patio Door

Sliding and pocket doors don’t swing on hinges, so the measuring approach shifts slightly.

Sliding Door Panel and Track Width

For a sliding or patio door, measure the total frame width and height the same way you would measure an exterior door: at three points, using the smallest reading. Then measure the width of a single panel if you’re only replacing one side of a two-panel patio door.

Check the track depth too. Sliding door tracks vary between manufacturers, and a mismatched track is a common source of installation delays.

Pocket Door Rough Opening

A pocket door needs a rough opening roughly double the door’s width, since half of that space is the wall cavity the door slides into. Measure the visible opening as you would any door, then confirm there’s a clear, unobstructed cavity behind the wall before ordering.

If you’re comparing sliding options for a patio or interior space, our sliding door replacement team can walk through track types and clearances with you directly.

Standard Door Sizes: Interior, Exterior, and Prehung (Reference Table)

Most doors are built around a handful of standard sizes, which is why nearly every question about door dimensions eventually comes back to one thing: is your number nominal or actual? The Window and Door Manufacturers Association maintains the industry standards that most U.S. manufacturers build to, which is why these sizes are so consistent across brands.

Standard Interior Door Measurements

Standard interior doors in the U.S. typically run 80 inches tall, with widths landing between 24 and 36 inches depending on the room. Closet doors trend narrower, while bedroom and office doors sit in the 28- to 36-inch range.

Standard Exterior Door Sizes

Exterior doors follow the same 80-inch height in most cases, but width varies more by function. A single front entry door is usually 36 inches, while double doors or French doors run 60 to 72 inches combined.

How to Measure Door Swing and Handing

Door handing tells your installer which way the door swings and which side the hinges sit on, and getting it wrong is an easy way to delay a project.

Stand outside the door, on the side the door swings away from you. If the hinges are on your left, it’s a left-hand door. If they’re on your right, it’s a right-hand door.

For exterior doors, this usually means standing outside the home looking in. For interior doors, stand on the side the door opens away from. Take a photo of the door mid-swing if you’re ordering online. It removes any guesswork for whoever’s fulfilling the order.

Special Measuring Situations

Accounting for Flooring Thickness

If you’re installing new flooring at the same time as a new door, measure the height from where the finished floor will sit, not the current subfloor. A quarter-inch of new tile or hardwood changes your bottom clearance more than people expect.

Out-of-Square or Non-Standard Openings

Older homes settle, and that means a rough opening isn’t always a perfect rectangle. Check for square by measuring both diagonals of the opening, corner to corner. If those two numbers are off by more than about 1/4 inch, the opening is out of square, and you’ll want to account for that with extra shimming room or a professional assessment before ordering.

Cutting a Pet Door or Glass Insert

Adding a pet door or glass insert to an existing slab means working within the door’s internal framework of stiles and rails. Measure the clear, unobstructed area between these internal supports before cutting, since going too wide can compromise the door’s structural integrity.

Common Door Measuring Mistakes to Avoid

Most poorly fitting doors can be traced back to a handful of common mistakes.

• Measuring the trim instead of the opening. Casing and molding aren’t structural. Measure the actual jamb or stud opening underneath.

• Taking just one measurement. A single width or height reading misses the settling that happens over time. Always take three and use the correct high or low reading for the job.

• Forgetting the thickness. A door that’s the right width and height but the wrong thickness still won’t sit flush in the frame.

• Ignoring new flooring plans. Height measurements taken before flooring goes in can throw off your bottom clearance.

• Guessing the handing. Ordering the wrong swing direction is one of the most common and most avoidable reasons for a return.

Your Door Measurement Checklist

Before you order anything, run through this list. Screenshot it, print this section, or copy it into your notes app so you have it on hand at the store or when you’re on the phone with a supplier.

1. Measured width at three points (top, middle, bottom)

2. Measured height at three points (both sides and center)

3. Measured thickness of the existing door or frame depth

4. Confirmed whether you need slab-only or a full prehung unit

5. Checked the rough opening for square

6. Determined door handing (left or right)

7. Accounted for new flooring height, if applicable

Once you’ve got accurate numbers, you’re ready to shop with confidence. And if any of this still feels like a lot to double-check on your own, that’s exactly what we’re here for. Curious what a front door replacement or a full door installation actually costs? Those guides break it down.
